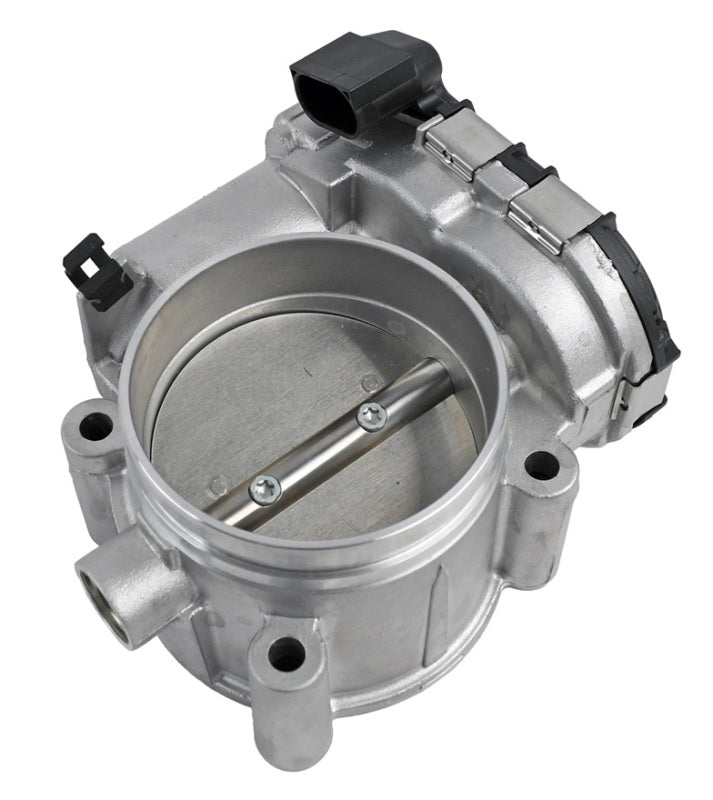

Bosch DBW Throttle Body 68mm/74mm/82mm

Bosch Motorsport Electronic Throttle Bodies

Bosch Motorsport electronic throttle bodies (ETBs) are designed to control the fresh air delivery of spark ignition engines in combination with an electronic throttle control (ETC) system. ETB applications with flex-fuel, CNG and LPG are permissible if injected in the air flow after the throttle body. A typical ETC system includes the following components: electronic throttle body, accelerator pedal module, and electronic control unit.

Additional features of Bosch Motorsport electronic throttle bodies include:

* Many bore diameters available
* Opening direction: most are counterclockwise; select ETBs are clockwise
* Two redundant sensors control the throttle position
* All ETBs have an idle air position
* Temperature range: -40 to 284 degrees F (-40 to 140 degrees C)
* ETBs can be connected directly to control units with ETC functionality
* Supply voltage: 6 to 16 V
* Supply voltage sensor: 5 ± 0.2 V
* Output signal I: 0 to 5 V for 0 to 90 degrees
* Output signal II: 5 to 0 V for 0 to 90 degrees

Some benefits to going DBW

• Deletes the factory throttle cable cleaning up the engine bay

• Eliminates the need for a Idle Air Control Valve
• Improved Driveability when using larger sized Throttle Bodies.
• Easier Part-Throttle tuning for a smoother part throttle response while driving
• ECU controlled Launch control
• REV-MATCHED tuning Downshifts and No-lift upshift shifting.
• Traction Control assistance using throttle position.
• Cruise Control and Valet mode for safety.

This is a Genuine Bosch Tb, do not be fooled by fakes found for less money.
