AEM Fluid Temperature Sensor

$ 43.73

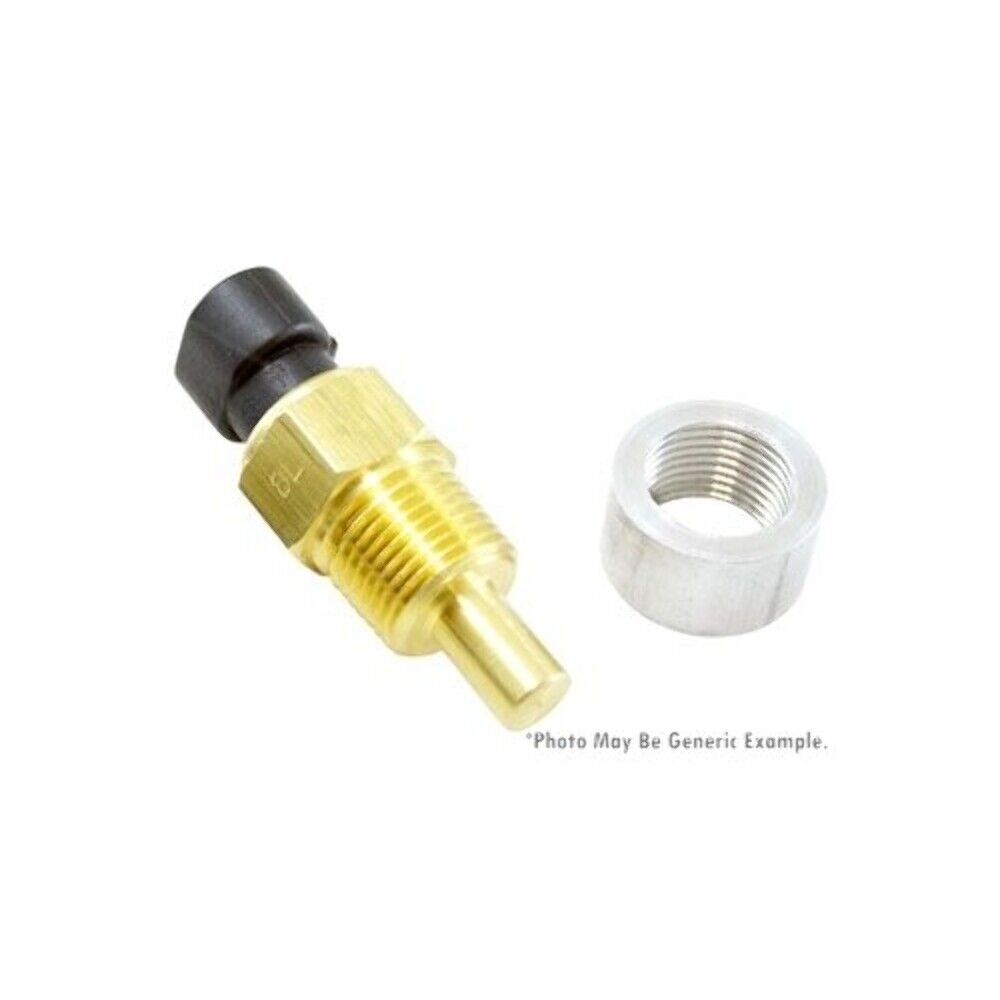

Temperature Sensor with 3/8" NPT Male Thread, Aluminum Bung, Plug, Pins & Pin Lock

Accuracy: < 2°C / 3.6°F
Operating Temp: -40C to 135C / -40F to 275F
Resistive Range (Ω): See Table
Dissipation Constant: 24 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
Thermal Time Constant: 20-30 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
Sensor Body Material: Brass
Thread: 3/8"-18 NPT
Hex Size: 3/4"
Installation Torque: 20Nm / 15 ft-lbs
Weight: 39.5g
Elec. Termination: Weatherproof connector. Includes mating connector, pins & wire seals
Includes: Water Temp Sensor, 3/8"-18 NPT Aluminum Bung, Connector, Pins & Wire Seals
