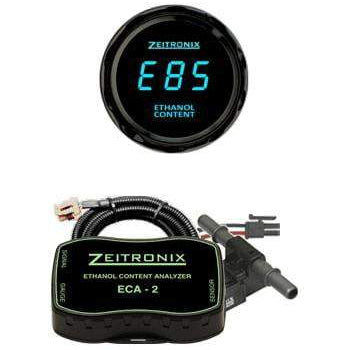

Zeitronix Ethanol Content Analyzer ACA-2 Kit

$ 379.00

Includes ECA-2, E% Gauge in choices of BLUE and RED digits and FF Sensor.

Ethanol Content Analyzer ECA-2
Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems. Connecting harness 8 ft (2.4m) length to Zeitronix Flow Through Flex Fuel Sensor is included. A flex fuel sensor is required for operation.



E% Ethanol Content Gauge
Stylish, machined. black anodized aluminum bezel and slim enclosure gives the gauge an elegant appearance. High contrast LED display with three large (0.4inch / 10mm) digits. Only 3/4 inches (19mm) thick. Slim design enables unique gauge mounting options.
It powers up right from the ECA-2 GAUGE port.
Outer Diameter: 2 1/2  inches (62mm)
Back Diameter:  2 1/16 inches (52mm)  (standard pod size)
Works only with ECA-2



E-85 Flow Through Flex Fuel Sensor
Looking for a flex fuel sensor to complete your conversion to E-85? We have the right sensor at an unbeatable price. This sensor can be used in combination with the Zeitronix Ethanol Content Analyzer for readouts of ethanol fuel concentrations and fuel temperature. If an analog output signal is required please make sure to combine use of this sensor with the ECA. Analog outputs for use with aftermarket systems are provided by the ECA which decodes the sensor output. Visit the ECA product page for more information.
